The Insane Engineering of the C-5M Super Galaxy Airlifter

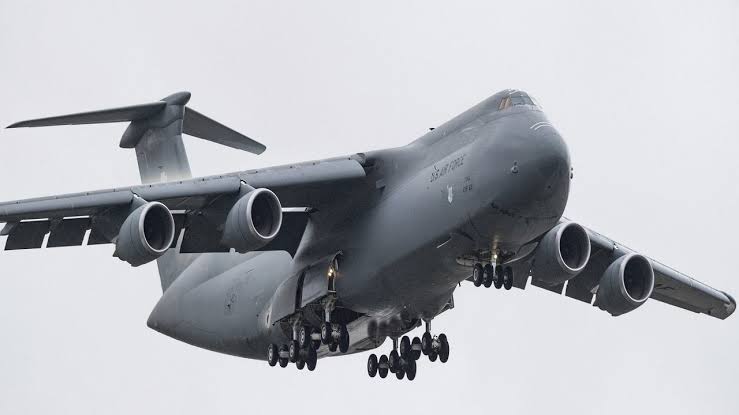

The C-5M Super Galaxy is a large military transport aircraft designed and manufactured by Lockheed Martin. It is a modernized version of the C-5 Galaxy, which has been in service with the United States Air Force (USAF) since the 1970s. The C-5M is one of the largest military aircraft in the world, with a maximum takeoff weight of over 900,000 pounds (408,000 kg).
Design and Features
The C-5M Super Galaxy has a distinctive design, with a high wing and a T-tail configuration. The aircraft is powered by four General Electric F138-GE-100 engines, each producing 50,000 pounds of thrust. The engines are mounted on pylons under the wings, and are equipped with thrust reversers to reduce stopping distances during landing.
The C-5M has a maximum length of 247 feet 10 inches (75.5 meters), a wingspan of 222 feet 9 inches (67.9 meters), and a height of 65 feet 1 inch (19.8 meters). The aircraft has a maximum takeoff weight of 920,000 pounds (417,000 kg), and a maximum payload capacity of 280,000 pounds (127,000 kg).
The C-5M has a range of over 5,000 nautical miles (9,300 km), and can cruise at altitudes of up to 45,000 feet (13,716 meters). The aircraft is equipped with a state-of-the-art avionics system, including advanced navigation and communication systems, and a heads-up display for the pilots.
Cargo Capacity
The C-5M has a large cargo bay, with a length of 121 feet 1 inch (36.9 meters), a width of 19 feet 5 inches (5.9 meters), and a height of 13 feet 6 inches (4.1 meters). The cargo bay is equipped with a cargo handling system, which allows for the rapid loading and unloading of cargo. The aircraft can carry a wide range of cargo, including:
Tanks and other military vehicles
Aircraft, including helicopters and fighter jets
Medical equipment and supplies
Humanitarian aid, such as food and shelter
Disaster relief equipment, such as generators and water purification systems
The C-5M can also be configured to carry outsize cargo, such as large aircraft engines, aircraft fuselages, and other unusual loads.
Modernization Program
The C-5M Super Galaxy is the result of a major modernization program undertaken by Lockheed Martin and the USAF. The program, known as the Reliability Enhancement and Re-engining Program (RERP), aimed to upgrade the C-5 fleet with new engines, avionics, and other systems.
The modernization program included the installation of new General Electric F138-GE-100 engines, which provide a significant increase in power and efficiency compared to the original engines. The program also included the installation of a new avionics system, which provides advanced navigation and communication capabilities.
Operational Historic
The C-5M Super Galaxy entered service with the USAF in 2009, and has since been used for a wide range of missions, including:
Strategic Airlift: The C-5M is used to transport cargo and personnel over long distances, often in support of military operations.
Tactical Airlift: The C-5M is used to transport cargo and personnel in support of tactical operations, such as deployments and redeployments.
Humanitarian Missions: The C-5M is used to transport humanitarian aid, such as food and shelter, to areas affected by natural disasters or conflict.
Disaster Relief: The C-5M is used to transport disaster relief equipment, such as generators and water purification systems, to areas affected by natural disasters.
Specifications
Here are some key specifications for the C-5M Super Galaxy:
Length: 247 feet 10 inches (75.5 meters)
Wingspan: 222 feet 9 inches (67.9 meters)
Height: 65 feet 1 inch (19.8 meters)
Maximum Takeoff weight: 920,000 pounds (417,000 kg)
Maximum Payload Capacity: 280,000 pounds (127,000 kg)
Range: Over 5,000 nautical miles (9,300 km)
Cruise Altitude: up to 45,000 feet (13,716 meters)
Engines: 4 x General Electric F138-GE-100 engines, each producing 50,000 pounds of thrust
Crew: 7 (2 pilots, 2 flight engineers, and 3 loadmasters)
Cargo Capacity: 121 feet 1 inch (36.9 meters) long, 19 feet 5 inches (5.9 meters) wide, and 13 feet 6 inches (4.1 meters) high
Overall, the C-5M Super Galaxy is a highly capable and versatile aircraft, with a wide range of applications in military and humanitarian operations. Its large cargo capacity, long range, and advanced avionics make it an essential asset for the USAF and other military forces around the world.
